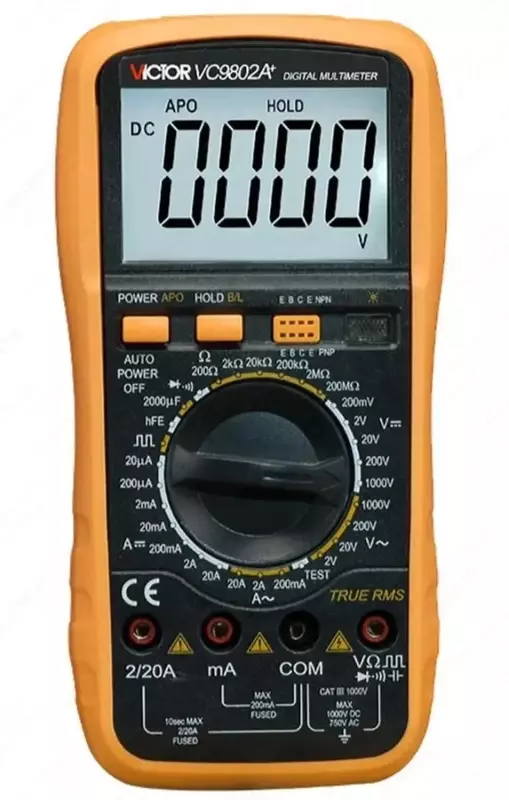

Viktor VC9802A+ - raqamli multimetr

Multimetr shkalasi raqami: 2000 ta hisoblash;

Haqiqiy RMS kuchlanish va oqim o'lchovi;

Ruxsat etilgan kuchlanish: 200m/2/20/200V: ±0,5%, 1000V: ±1,0%;

AC kuchlanish: 2/20/200V: ±0,8%, 750V: ±1,2% (40 ~ 1000Hz sinus to'lqin, 40 ~ 200Hz ixtiyoriy to'lqin shakli);

Ruxsat etilgan oqim: 20m/200m/2m/20m/200mA: ±1,2%, 2A: ±1,5%, 20A: ±2,0%;

AC oqimi: 200mA: ±1,5%, 2A: ±2,0%, 20A: ±3,0% (40~200Hz);

Qarshilik: 200/2k/20k/200k/2 MOhm: ±0,8%, 200 MOhm: ±5,0%;

Kondensator quvvati: 20n/200n/2uF: ±3,5%, 20u/200u/2000uF: ±5%;

Transistorlarning joriy kuchayishi: 1 - 1000;

Kvadrat to'lqin generatori: 50 Hz - 5 kHz;

110V~380V AC faza mavjudligini tekshirish

diod sinovi;

ulanish sinovi;

O'qishlarni ushlab turish HOLD;

Displeyning orqa nuri;

Batareya pastligi ko'rsatkichi;
