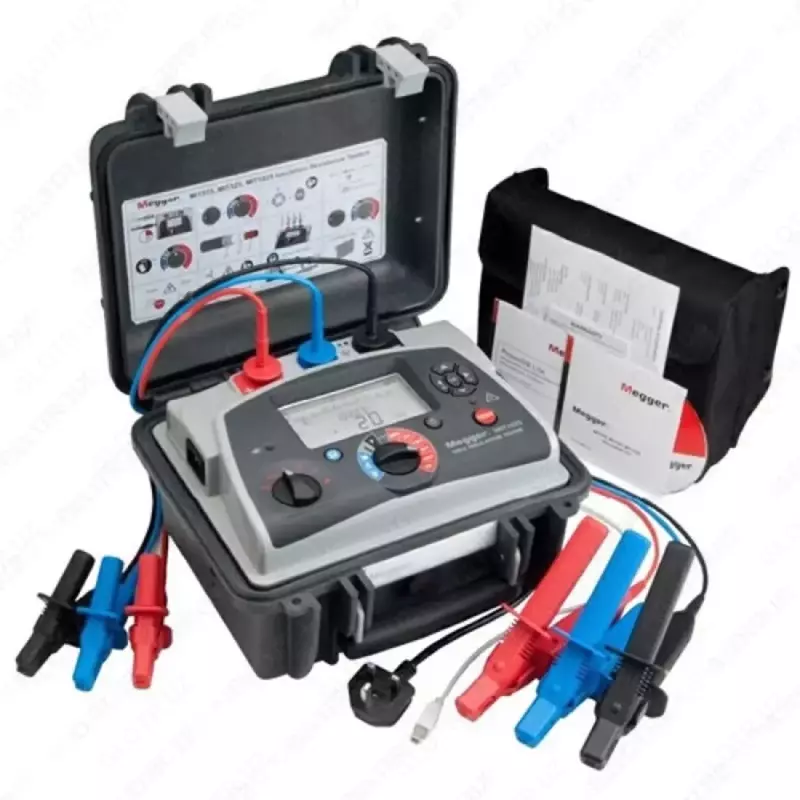

MIT1025 - izolyatsiya qarshiligini tekshirgich

Kirish kuchlanish diapazoni 85-265 Vrms, 50/60 Hz, 60 VA

Batareya 11,1V, 5,2Amp, IEC 62133:2003 standartiga mos keladi.

Batareyaning ishlash muddati odatda 100 MŌ yuk bilan 10 kV da 4,5 soat uzluksiz ishlash.

Batareyani zaryadlash vaqti: chuqur zaryadsizlanish 2,5 soat, normal zaryadsizlanish 2 soat.

30 daqiqada tez zaryadlash. 100 MŌ bilan 5 kV yukda ish vaqti.

Sinov kuchlanishi 500V, 1000V, 2500V, 5000V, 10000V

Foydalanuvchi tomonidan belgilangan sinov kuchlanishi 5 kV dan 10 kV gacha 25 V bosqichda

Aniqlik (23°C, 10 kV) 10 kV 5000 V 2500 V 1000 V 500 V 250 V

±5% dan 2 TŌ 2 TŌ 500 GŌ 200 GŌ 100 GŌ 50 GŌ gacha

Ot ±20% dan 20 TŌ 10 TŌ 5 TŌ 2 TŌ 1 TŌ 500 GŌ gacha

Input Guard 100 MŌ yuk bilan 500 kŌ oqish himoyasida 2% ga oshad

Analog qarshilik to'lqin shakli diapazoni 100 kŌ dan 10 TŌ gacha

Raqamli qarshilik ko'rsatish diapazoni 10 kOm dan 20 TOhm gacha

Qiqa tutashuv oqimi 3 mA nominal, maks. barcha yuklar uchun quvvat, 5 mA ga baholangan ko'pchilik sinovchilardan ustundir

Izolyatsiya qarshiligi signalizatsiyasi 100 kOhm dan 1 GOhm gacha
